Optical fiber cable is a cable containing one or more optical fibers that are used to carry light. The optical fiber elements are typically individually coated with plastic layers and contained in a protective tube suitable for the environment where the cable will be deployed. Different types of cable are used for different applications, for example long distance telecommunication, or providing a high-speed data connection between different parts of a building
|
|
|

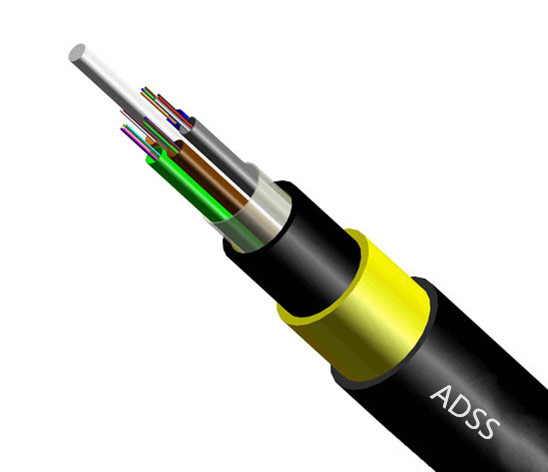

| ADSS | Aerial outdoor for power line | All Dielectric self-support . Loose tube type, tubes jelly filled, tubes with filler rods lay up around non metallic FRP (Fiber-glass Reinforced Plastic) central strength member, compound filled in the apertures of the cable core, PE inner sheath, Aramid Yarns reinforced, and PE outer sheath. |  |
|
Item |
Laying mode |
No. of fiber |
Outer Dia. (mm) |
Tensile Strength Resistance (short term) |
Crush Resistance (N/100mm) |
Permissible Bending Radius |
Weight |
|
ADSS |
Aerial outdoor for power line |
2-144 |
|
|
|
10times x Dia. |
|
*Operating Temperature Range: -40℃ ~ +60℃
*Fiber coil is from CORNING . Single mode G652,G657 ; Multi mode OM1,OM2( G651)
*Fiber color and Binder color code: according to EIA/TIA 598B
|
Model of Optical fiber |
|
G.652 |
G.657 |
OM2(50/125μm) |
OM1(62.5/125μm) |
|
Attenuation (+20°C)
|
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.35 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.21dB/km |
|
|
|
|
@1625nm |
|
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz@km |
≥200 MHz@km |
|
@1300nm |
|
|
≥1000 MHz@km |
≥600 MHz@km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1260nm |
|
|
|
