Cat6

    Commonly referred to as Cat 6, is a standardized cable for Gigabit Ethernet and other network physical layers that is backward compatible with the Category 5/5e and Category 3 cable standards.  Compared with Cat 5 and Cat 5e, Cat 6 features more stringent specifications for crosstalk and system noise.


     The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T/1000BASE-TX (Gigabit Ehernet) and 10GBASE-T (10-Gigabit Ethernet)

Key Benefits

  • High performance
  • High speed transmission
  • Low crosstalk
  • Easy installations
  • Lower Price

Applications

  • Structured cabling for computer networks
  • 10BASE-T,
  • 100BASE-TX (Fast Ethernet),
  • 1000BASE-T/1000BASE-TX (Gigabit Ethernet).
  • 10GBASE-T (10-Gigabit Ethernet)
  • Carry signals for telephony and video


Pair Identification & Products standard:

ANSI/TIA/EIA-568-A, Cable types, connector types and cabling topologies are also defined by TIA/EIA-568-B

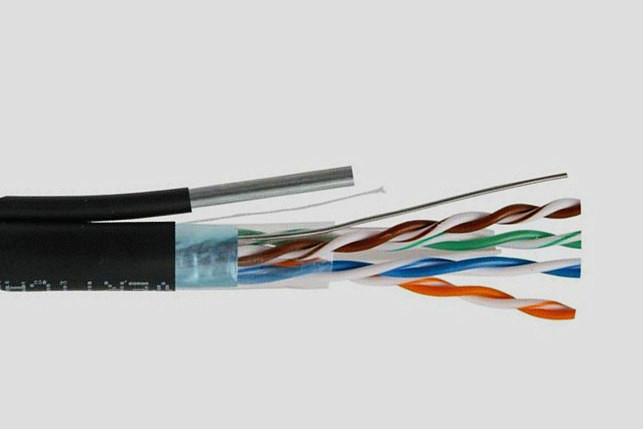

 Structure：

Specifications:

Item
Descriptions
Approved Testing Band Mhz
Related Connectors
UTP Cat6 23AWG BC conductor, PVC Jacket (Grey or Blue) , Cross member, up to 250MHZ RJ45 Connector
UTP Cat6- CCAL 23AWG CCAL conductor, PVC Jacket (Grey or Blue) , Cross member RJ45 Connector
FTP Cat6 23AWG BC conductor, AL Foil shield , TC drain wire, PVC Jacket (Grey or Blue) , Cross member, up to 100MHZ RJ45 Connector
Cat6 outdoor 23AWG BC conductor, PE Jacket (Black only) , Cross member, up to 250MHZ RJ45 Connector
Cat6 outdoor double Jacket 23AWG BC conductor, PVC Inner Jacket , PE Outer Jacket (Black only) , Cross member, up to 250MHZ RJ45 Connector
Cat6 Aerial 23AWG BC conductor, PVC Jacket, 1.13mm or strand wire Messenger , Cross member, up to 250MHZ RJ45 Connector



Frequency
MHz 		Impedance
Ohm 		Return Loss
dB 		Attenuation
dB/100m 		Next
dB 		Acr
dB 		Eifext
dB
1.0 100±15 20 2 74.3 72.3 67.8
4.0 23 3.8 65.3 61.5 55.7
8.0 24.5 5.4 60.8 55.4 49.7
10.0 25 6 59.3 53.3 47.8
16.0 25 7.6 56.3 48.7 43.7
20.0 25 8.5 54.8 46.3 41.7
25.0 24.3 9.6 53.3 43.7 39.8
31.25 23.6 10.7 51.9 41.2 37.9
62.5 21.5 15.5 47.4 31.9 31.8
100 20.1 19.9 44.3 24.4 27.8
155 18.8 25.3 41.5 16.2 23.9
200 18 29.2 39.8 10.6 21.7
