Fiber reaches the
boundary of the living space, such as a box on the outside wall of a home.
Passive optical networks and point-to-point Ethernet are architectures that
deliver triple-play services over FTTH networks directly from an operator's
central office
● Simple structure, light weight and high tensile strength
● Two pieces of steel wires or FRP as strengh member.
● Novel groove design, easily strip and splice, simplify the installation and maintenance.
● Low smoke, zero halogen and flame retardant sheath, environment-friendly, good Safety

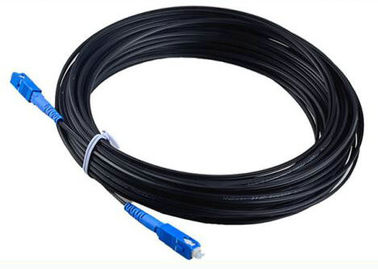

| GJXH | A Basic model of FTTH cable without Messenger ,Two pieces of steel wires as strengh member, G652.D or G657.A optical fiber 1 up to 4 cores, LSZH outer jacket. |  |
||
| GJXFH | FTTH cable without Messenger ,Only different with GJXH that two pieces of FRP as strengh member, lighter Weight, G652.D or G657.A optical fiber 1 up to 4 cores, LSZH outer jacket. |  |
|
Model of Optical fiber |
|
G.652 |
G.657 |
OM2(50/125μm) |
OM1(62.5/125μm) |
|
Attenuation (+20°C)
|
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.35 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.21dB/km |
|
|
|
|
@1625nm |
|
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz@km |
≥200 MHz@km |
|
@1300nm |
|
|
≥1000 MHz@km |
≥600 MHz@km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1260nm |
|
|
|
* Operating Temperature Range: -40℃ ~ +60℃
* Fiber coil is from CORNING . Single mode G652,G657 ; Multi mode OM1,OM2( G651)
* Fiber color and Binder color code: according to EIA/TIA 598B
