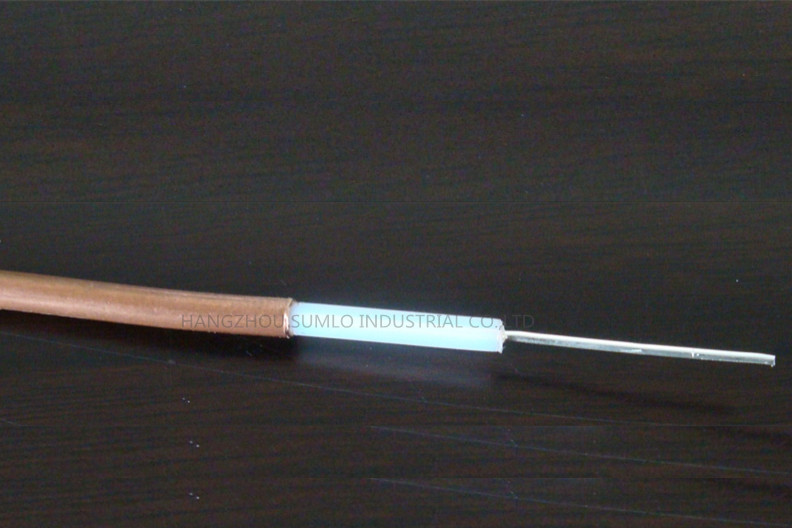

RG401, ,RG402,RG405 Semi-Rigid

Semi-rigid coaxial cable finds application in frequency ranges from 500 megahertz (500 MHz) through 65 Gigahertz (65 GHz) and beyond. Almost any system designed for 500 megahertz and above, and in need of good operational performance and total shielding, can utilize semi-rigid cable .It is still the best microwave transmission medium available in the world. The solid tubular outer conductor yields 100% RF shielding and enables the dielectric and center conductor to remain precisely spaced. This results in optimum impedance control as well as the lowest possible insertion loss.

Key Benefits

  • Excellent performance
  • PTFE insulation
  • 100% RF shield
  • Precise dimension

Applications

  • high-speed computer systems
  • medical electronics
  • nuclear power plants
  • communications systems
  • CATV transmission systems
  • oscillators and amplifiers, printed circuit boards, delay lines and capacitor sections.

Specifications:

Item
Descriptions
Impedance( ohm)
Approved Testing Band Mhz
Related Connectors
RG401 (SR-250) 1.63mm SPC inner conductor , 6.35mm Seamless copper Tube 50+/-0.5 0.5-20.0 SMA Male ,TNC Crimp,7/16 Female , N Male
RG401-AL-TP (SR-250-AL-TP) 1.63mm SPC inner conductor , 6.35mm Seamless Tin Plated Aluminum Tube 50+/-0.5 0.5-20.0 SMA Male ,TNC Crimp,7/16 Female , N Male
RG402(SR-141) 0.91mm SPC inner conductor , 3.58mm Seamless copper Tube 50+/-2 0.5-20.0 SMA, N TYPE , MCX
RG402-AL-TP (SF-141-AL-TP) 0.91mm SPC inner conductor , 3.58mm Seamless Tin Plated Aluminum Tube 50+/-2 0.5-20.0 SMA, N TYPE , MCX
RG405(SR-0865) 0.51mm SPC inner conductor, 2.20mm Seamless copper Tube 50+/-2 0.5-20.0 SMA, N TYPE , MCX, TNC
RG405-FEP (SR-0865-AL-TP) 0.51mm SPC inner conductor, 2.20mm Seamless Tin Plated Aluminum Tube 50+/-2 0.5-20.0 SMA, N TYPE , MCX, TNC


Remark:

SPCCS : Silver plated copper clad steel

SPC: Silver plated copper




RG401

Attenuation & Average Power(20 ℃ & Seal Level)

Frequency(MHz) Max Attenuation dB/100ft(dB/meter) Power(Watts CW)
0.5 0.05(0.16) 1332.1
1.0 0.07(0.23) 914.6
5.0 0.17(0.57) 364.4
10.0 0.27(0.89) 238.2
20.0 0.00(0.00) 0.0



RG402

Attenuation & Average Power(20 ℃ & Seal Level)

Frequency(MHz) Max Attenuation dB/100ft(dB/meter) Power(Watts CW)
0.5 0.08(0.26) 600.5
1.0 0.11(0.37) 417.5
5.0 0.28(0.91) 174.4
10.0 0.42(1.36) 117.5
20.0 0.64(2.09) 77.9



RG405

Attenuation & Average Power(20 ℃ & Seal Level)

Frequency(MHz) Max Attenuation dB/100ft(dB/meter) Power(Watts CW)
0.5 0.14(0.46) 232.0
1.0 0.20(0.66) 162.4
5.0 0.46(1.51) 69.8
10.0 0.68(2.23) 47.9
20.0 1.00(3.28) 32.6
