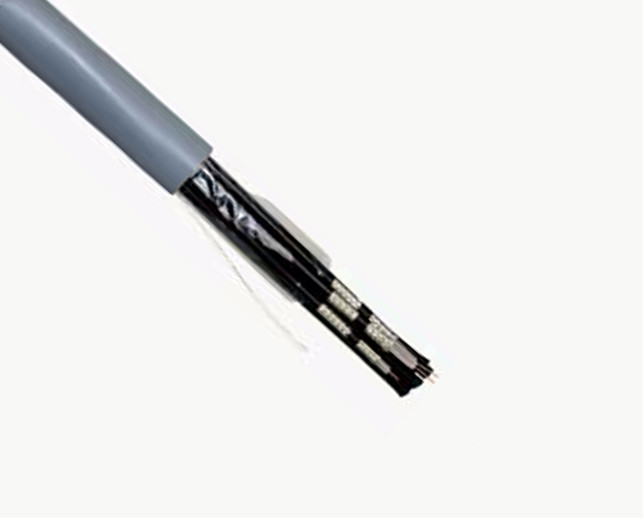

TZC750 24 ,TZC750 25 series

        ERICSSON STANDARD 75 Ohm telecommunication cables, Used for the interconnection of each equipment or cables of the same characteristic impedance .


Key Benefits

  • High performance
  • Special design
  • Single/ Multi-core versions
  • Double braid
  • Easy for installation

Applications

  • Telecom systems
  • Digital telephone exchange
  • Interconnection of telecommunication equipmen

Specifications:

Item
Descriptions
Approved Testing Band Mhz
Related Connectors
TZC 750 24 0.31mm BC conductor , Double Tinned copper braid. 3.55mm PVC (Black only), standard shield 1-200 BNC JACK CRIMP, BT43 PLUG CRIMP,1.6/5.6 JACK CRIMP
TZC 750 25 0.31mm BC conductor , Double Tinned copper braid. 3.55mm HFLS (Black only), standard shield 1-200 BNC JACK CRIMP, BT43 PLUG CRIMP,1.6/5.6 JACK CRIMP
TZC 750 05 0.49mm TC conductor, Double Tinned copper braid. 5.60mm PVC (Black only) ,standard shield 1-200 BNC JACK CRIMP, BT43 PLUG CRIMP,1.6/5.6 JACK CRIMP



Frequency(MHz) TZC 750 24 TZC 750 25 TZC 750 05
1.02 2.3 2.3 1.7
4.22 4.6 4.6 3
5
10
17.18 9.3 5.9
20
30
34.37
50
70 19 19 12
100
200 32 32 18
